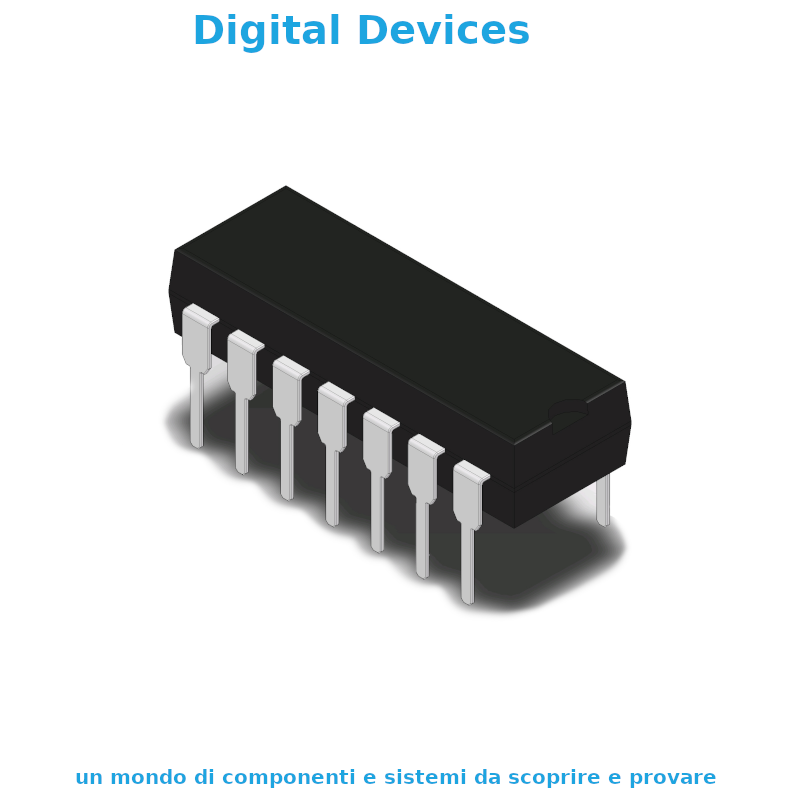

Integrated Circuit CMOS 40xx series

€0.37

Integrated Circuit CMOS 40xx series

Code: HCF 4001 BE

Quantity

Last items in stock

Terms and conditions

Contract and Terms of Sale

Delivery and return policy

We only offer safe shipments and guarantee the right to return

Guarantees on the Processing of Sensitive Data

Products description

Integrated Circuit CMOS 40xx series. Supply Voltage: CD - HCT - TC Types from -05 to +20 V. HCF - SCL Types from -05 to +18 V. Input Voltage: From -0.5 to VDD + 0.5 Operating Temperature: CD - HCT Types from -55 to +125 °C. HCF - SCL - TC Types from -40 to +85 °C. Storage Temperature: From -65 to +150 °C.
Technical features:
Item	Function	Case	Data Sheet
M4000B	Quad 2 Input NAND Gates	DIP14
HCF4001BE	Quad 2 Input NOR Gates	DIP14
HCF4011BE	Quad 2 Input NAND Gates	DIP14
HEF4015BE SCL4015BE	Dual four stage shift register	DIP16
TC4020BP CD4020BE HCF4020BE	14 Stage ripple-carry Binary Counter/Divider	DIP16
TC4024BE	7 Stage ripple-carry Binary Counter/Divider	DIP14
TC4028BF	BCD to Decimal Decoder	DIP14
HCF4029BE	Presettable Up/Down Counter Binary or BCD Decade	DIP16
HCF4042BP	Quadruple D-latch	DIP16
HCF4056BE	BCD to 7-Segment Decoder/Driver with Strobeb latch Function	DIP16
HCF4069UB	Hex Inverter	DIP14
HEF4511BP	BCD to 7-segment latch/decoder/driver	DIP16
HCF4518B	Dual BCD Up-Counter	DIP16
TC4528BP	Dual Monostable Multivibrator	DIP16
