L293D Module - DC Step-Step Servomotor Driver
€3.16
L293 Module - Controller of DC, Stepper and Servomotors
Terms and conditions
Contract and Terms of Sale
Delivery and return policy
We only offer safe shipments and guarantee the right to return
Privacy Policy
Guarantees on the Processing of Sensitive Data
 |

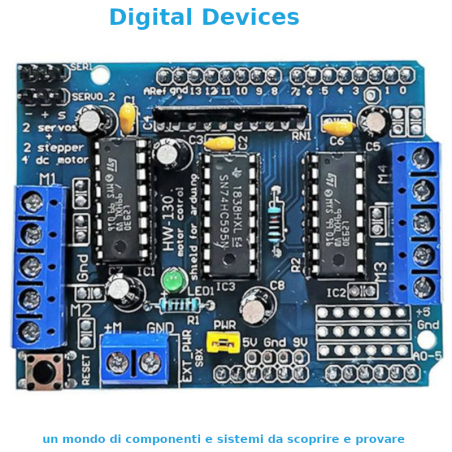

The Motor Driver Board for Arduino is able to control one of the following combinations of motors: - 4 DC motors with individual 8-bit speed selection. - 2 unipolar or bipolar stepper motors - 1 stepper motor and two DC motors It can also drive two small servo motors. To drive the motors connected to it, the Motor Driver board for Arduino uses two L293D drivers and a 74HC595 shift register. The pins used on the Arduino board are only 3. The power supply can be taken from the Arduino but it is advisable to use an external power supply connected to the terminal block on the board. |
|||
|
Technical features: |
|||
| Number of DC motors driven: | Max 4 | Number of stepper motors driven: | Max 2 |
| Number of piloted servomotors: | Max 2 to 5V | Output current: | 0.6 A |
| Motor connection: | Screw connectors for conductors from 10 to 22 AWG | External power supply for motors: | Screw connectors |
| Voltage range for external motor power supply: | 4,5 - 25 V | Compatibility: | Arduino uno/Mega/Diecimila - Dccduino/Mega |
