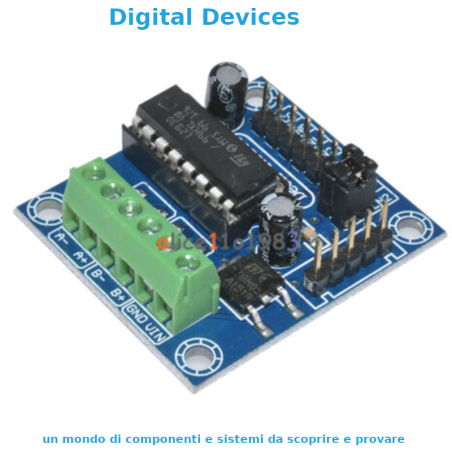

The Mini L293 Motor Driver Board for Arduino is able to control: - 2 DC motors with individual 8-bit speed selection. - 1 unipolar or bipolar stepper motors Also it can drive a small servo motor. There are 2 terminals on the board for the separate power supply of the motors to make it independent from the 5V of the board. |
|||
|
Technical features: |
|||
| Number of DC motors driven: | Max 2. | Number of stepper motors driven: | Max 1. |
| Number of piloted servomotors: | Max 1 to 5V. | Output current: | 0.6 A. |
| Motor connection: | Screw connectors for conductors from 10 to 22 AWG. | External power supply for motors: | Screw connectors. |
| Voltage range for external motor power supply: | 4,5 - 25 V. | Compatibility: | Arduino uno/Mega/Diecimila - Dccduino/Mega. |
